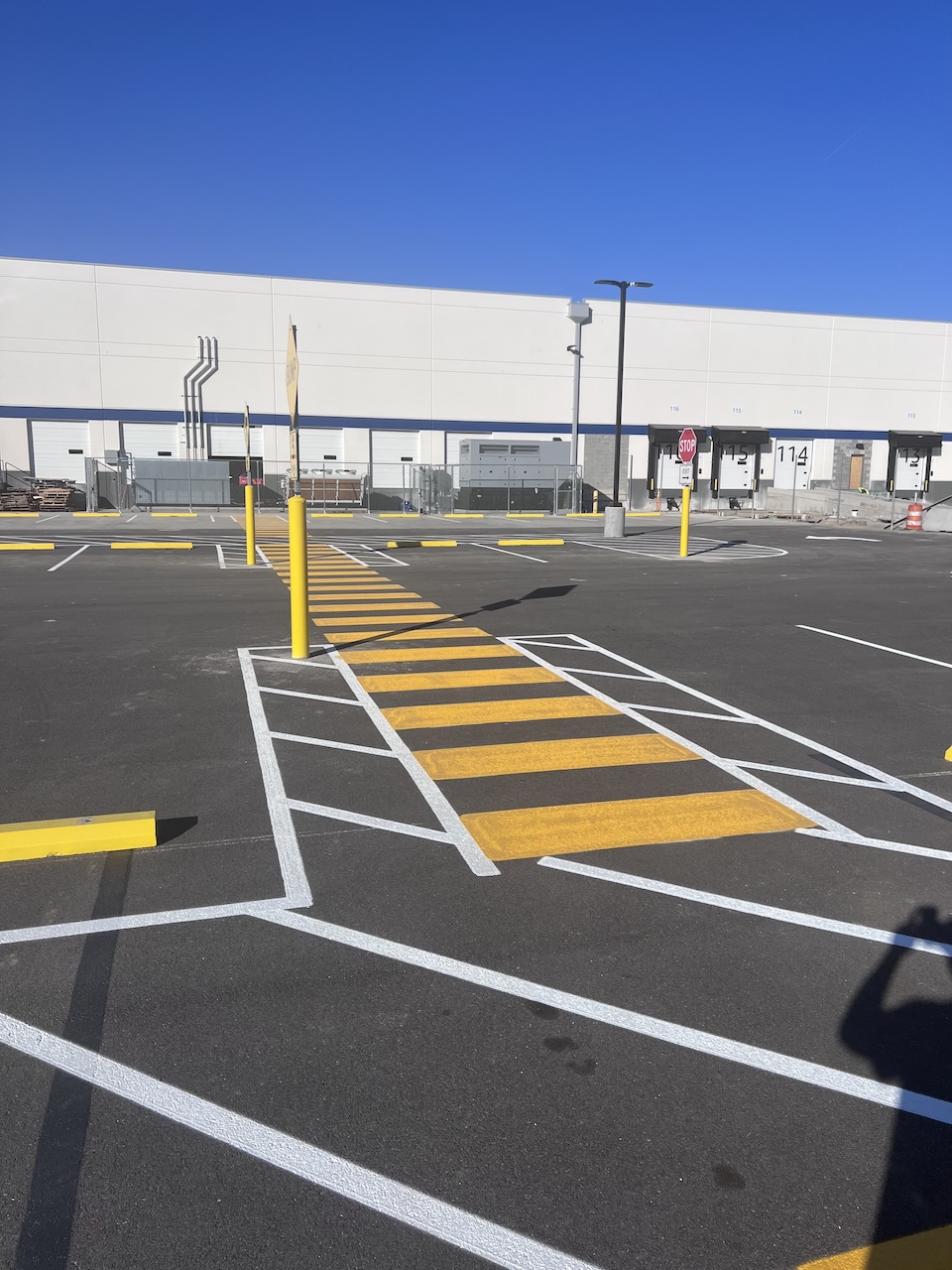

Understanding Parking Lot Striping Loading Zones and Bays

While standard parking lot striping focuses on the needs of standard passenger vehicles, most commercial properties require far more to accommodate everyday operations. Parking lot striping loading zones and bays can support back-of-house operations, and these areas require comprehensive striping to maintain order, safety, and traffic efficiency. Here’s what you need to know

What Are Parking Lot Striping Loading Zones and Bays?

Loading zones and bays are designated areas that striping contractors in Richmond can create to support the logistical needs of your property. Marked loading zones are for rapid loading and unloading. While you can use loading zones for quick delivery and goods, striping companies in Richmond typically create these areas for passengers.

For example, many retail stores, restaurants, shopping centers, hospitals, and even office parks have loading zones for quick drop-off and pick-up. With ride-sharing so prevalent these days, striping companies are creating loading docks more frequently.

Loading bays are a bit different. In a Richmond parking lot striping layout, loading bays are typically separate from standard parking areas. They’re towards the back or side of the building and serve as a dedicated area for loading and unloading goods from large transport trucks.

What Other Features Do Richmond Parking Lot Striping Layouts Need?

Beyond standard spots, loading zones, and bays, striping contractors in Richmond can create a host of other features to help improve traffic flow, safety, and operational efficiency. Many of these features are optional, and striping companies include them in a layout only when necessary. However, others are required by law.

•Accessible Stalls: Every parking lot striping layout needs accessible stalls and accompanying aisles. They’re mandatory, and failing to include them would be a violation of the Americans with Disabilities Act. All parking lots must have a specific number of ADA-compliant stalls based on total capacity, and each stall must meet minimum sizing and striping requirements.
•Marked Crosswalks: Many municipalities require crosswalks for commercial or multi-family residential parking lots. In those that don’t, they’re an often-requested feature. Striping companies use crosswalks to create defined pathways for pedestrian traffic.
•Fire Lanes: Fire lanes are no-parking zones designed to give emergency responders quick, easy access to a building. Striping companies in Richmond include fire lanes to ensure code compliance and building safety.

What Are Standard Dimensions for Parking Lot Striping Loading Zones and Bays?

The best Richmond VA striping companies will apply lines and markings in accordance with all federal, state, and local laws. That includes creating appropriately sized stalls, loading zones, and more. While sizing can vary throughout the country, here are several standards that apply to Richmond parking lot striping.

•Standard Stalls: Standard off-street parking stalls are usually 9 feet wide by 18 feet long.
•ADA-Compliant Stalls: ADA-compliant stalls must be at least 8 feet wide by 18 feet long. However, each spot also needs an attached access aisle that’s at least 5 feet wide.
•Van-Accessible Stalls: Richmond VA striping companies have two sizing options for van-accessible stalls. The total width can be either 11 feet or 8 feet, with an attached 8-foot-wide access aisle.
•Loading Zones: Passenger and commercial loading zones must have a pull-up length of at least 20 feet. The width must be at least 8 feet. Passenger loading zones require a 5-foot access aisle, which striping companies must stripe with diagonal hatch marks.
•Loading Bays: In Richmond, there are no longer minimum sizing requirements for off-street loading bays. However, the standard for Richmond VA striping companies is to create bays that are at least 12 feet wide and 50-60 feet long for larger semi trucks. Bays for smaller delivery vehicles are typically 10 feet wide by 25 feet long.
•Fire Lanes: Fire lanes must have a minimum unobstructed width of 20 feet, and the lane’s inner edge must be 15 to 40 feet from the building’s exterior wall. Striping contractors in Richmond must also apply hatched striping with stenciled lettering that’s 18 to 24 inches tall.

If you’re unsure of what your parking lot striping needs to remain effective and code-compliant, let CVA Striping help. We’re an experienced striping company offering services like parking lot striping, restriping, fire line striping, ADA compliance, parking stop installation, signage, sealcoating, asphalt repairs, and more. We’re well-versed in all applicable laws and can help you create the safest and most functional parking area in your community. Let us show you why we’re among the most trusted striping companies in Richmond.

Call CVA Striping at (804) 432-3255 to learn more and request a free, no-obligation project quote today. You can also email us at cvastriping@gmail.com or use our online form to contact us.
